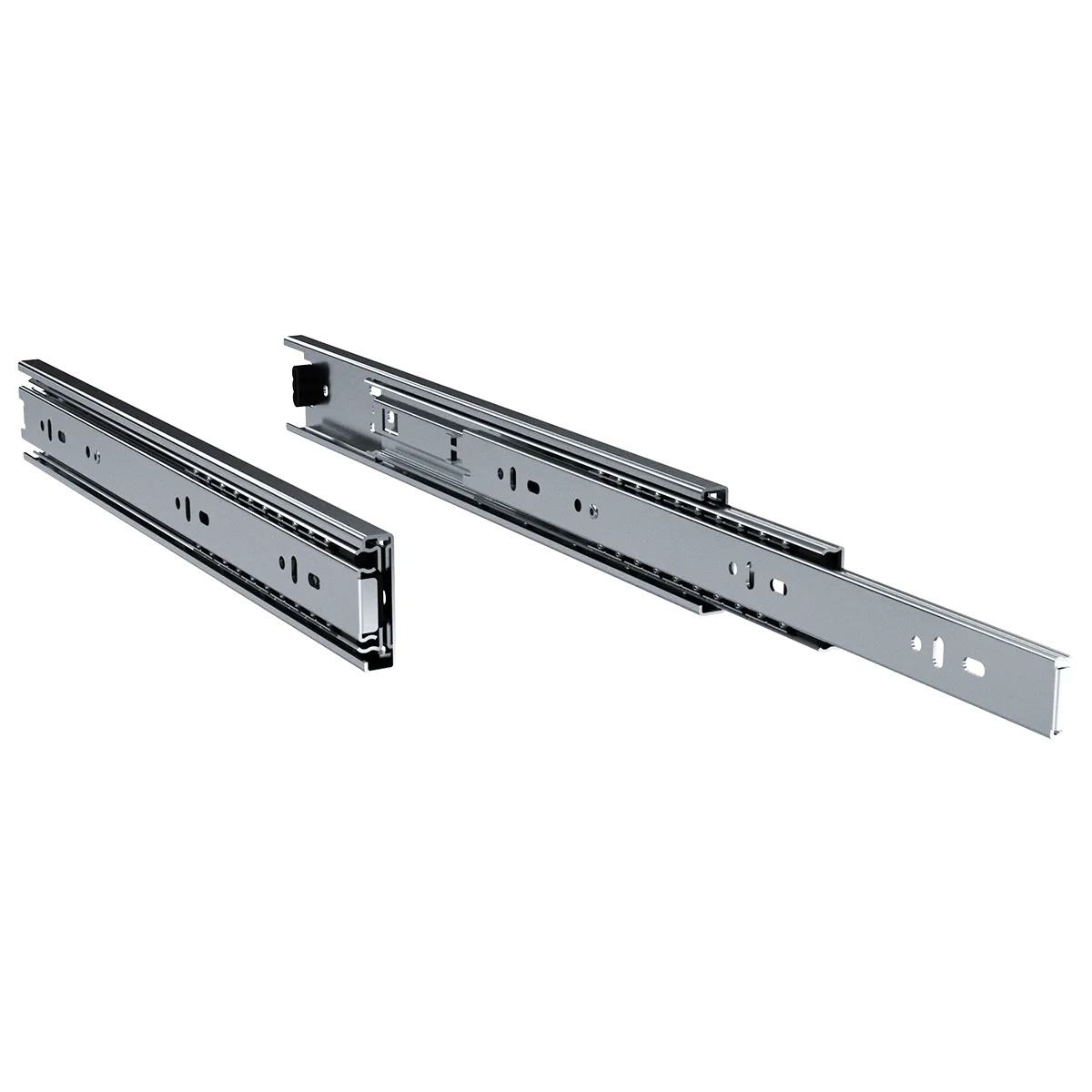

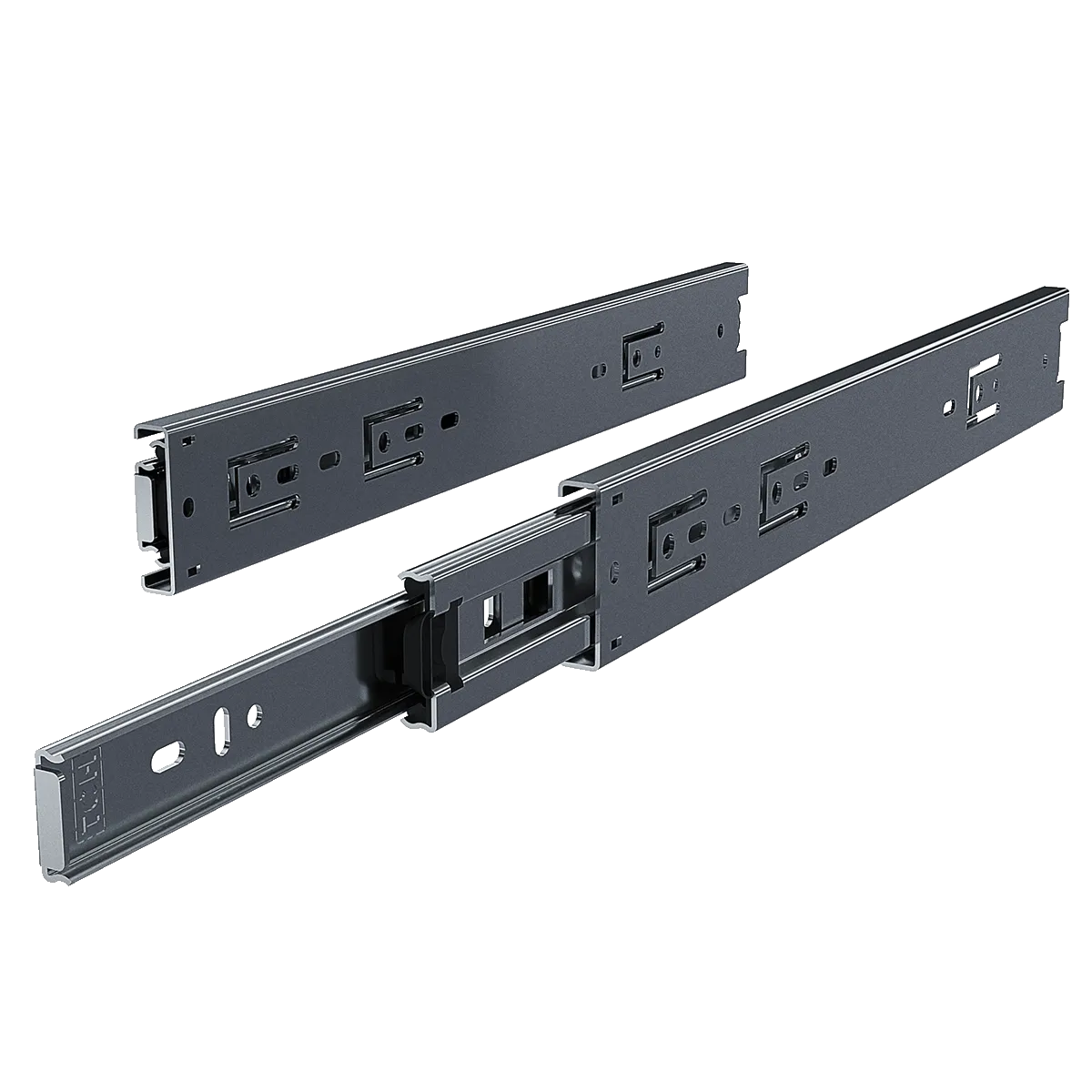

14-inch Full-extension Ball-bearing Drawer Slide, 100 Lbs Capacity (Pair)

Name: 14-inch Full-extension Ball-bearing Drawer Slide, 100 Lbs Capacity (Pair)
SKU: 422562

$ 7.53

$ 0.00

Save: $

Size:

Unavailable

Please select combo product attributes

The combo subtotal is $,SAVE$

Pair of 10in drawer slides - 100 lb load rating per pair

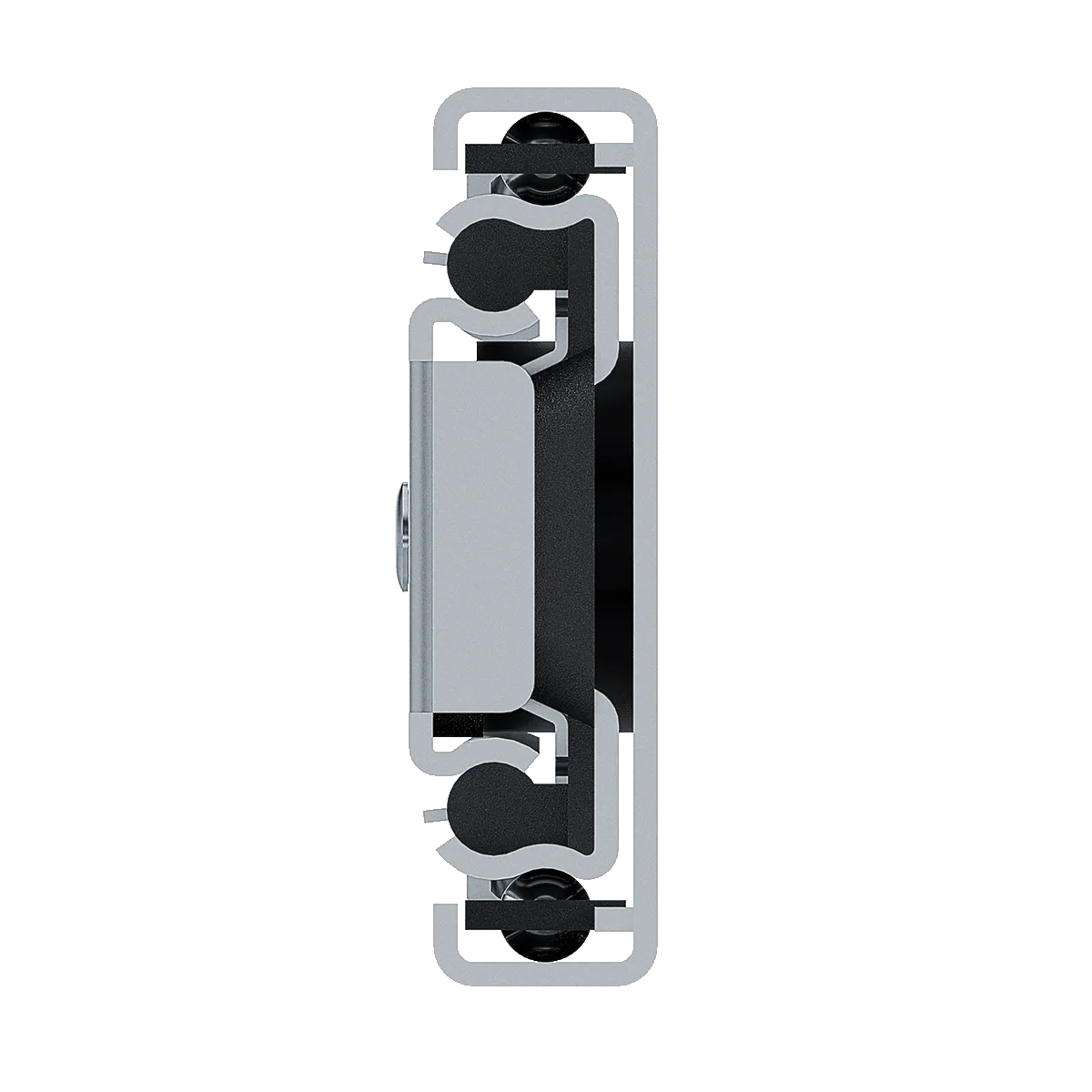

Drawer slide profile is 1/2in. wide x 1-7/8in. tall.

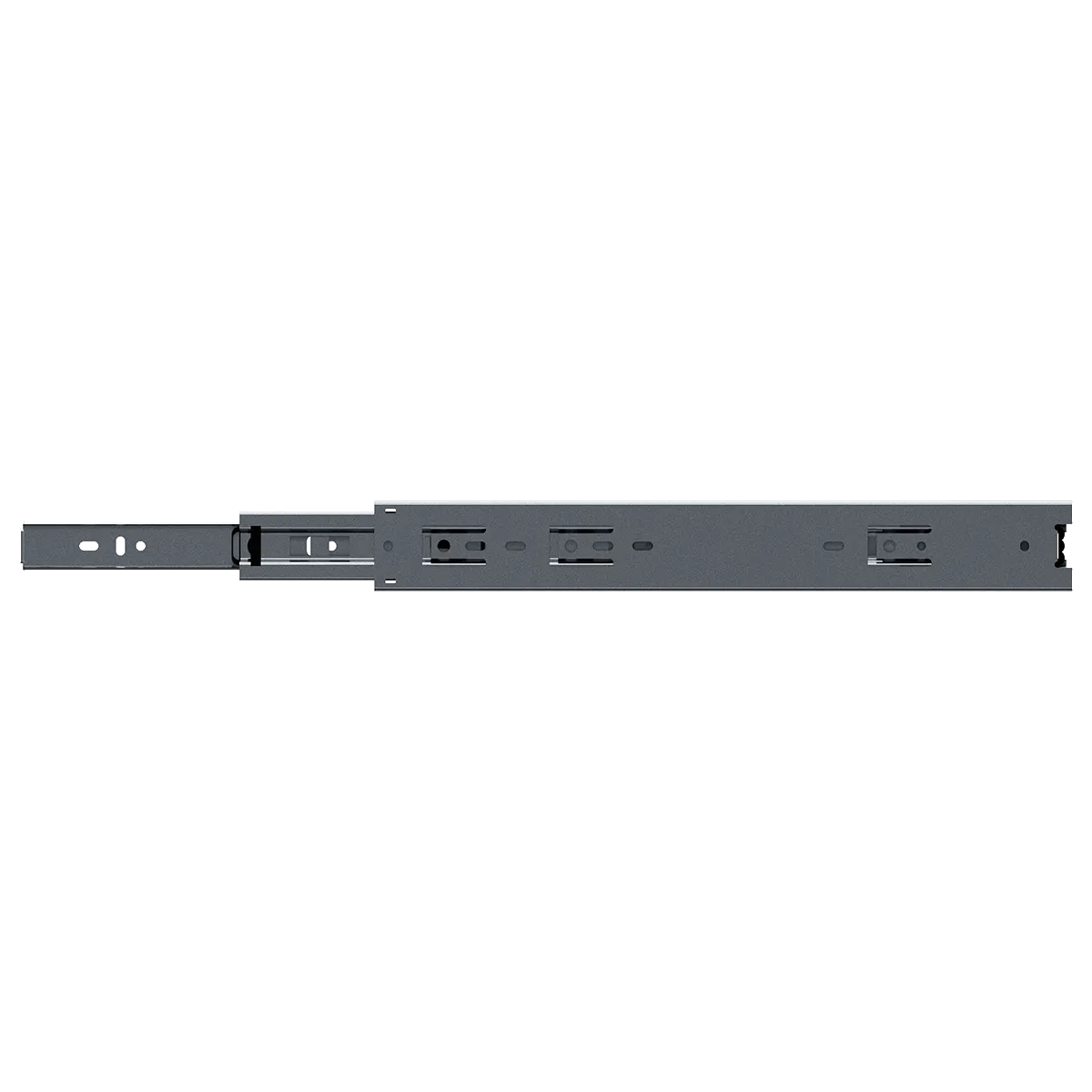

3 stage, full extension steel draw slides with zinc coating for corrosion resistance
Quick release allows mechanism to be separated for installation and removal, High precision hardened steel ball bearings ensures smooth travel.
* NOTE: MOUNTING HARDWARE NOT INCLUDED * Download product literature for mounting guide

MFG Item No: 520-1445800

Material: Steel

Color/Finish: Bright Zinc Plate

Size: 14"

Width: 14.00in [355.6mm]

Height: 1.79in [45.5mm]

Depth: 0.50in [12.7mm]

Weight: 2.31lb [1.0 kg]

Load Capacity: 100.00 lb [45.4 kg]

Country of Origin: China

Package Size: 1

Package Type: PolyBag
