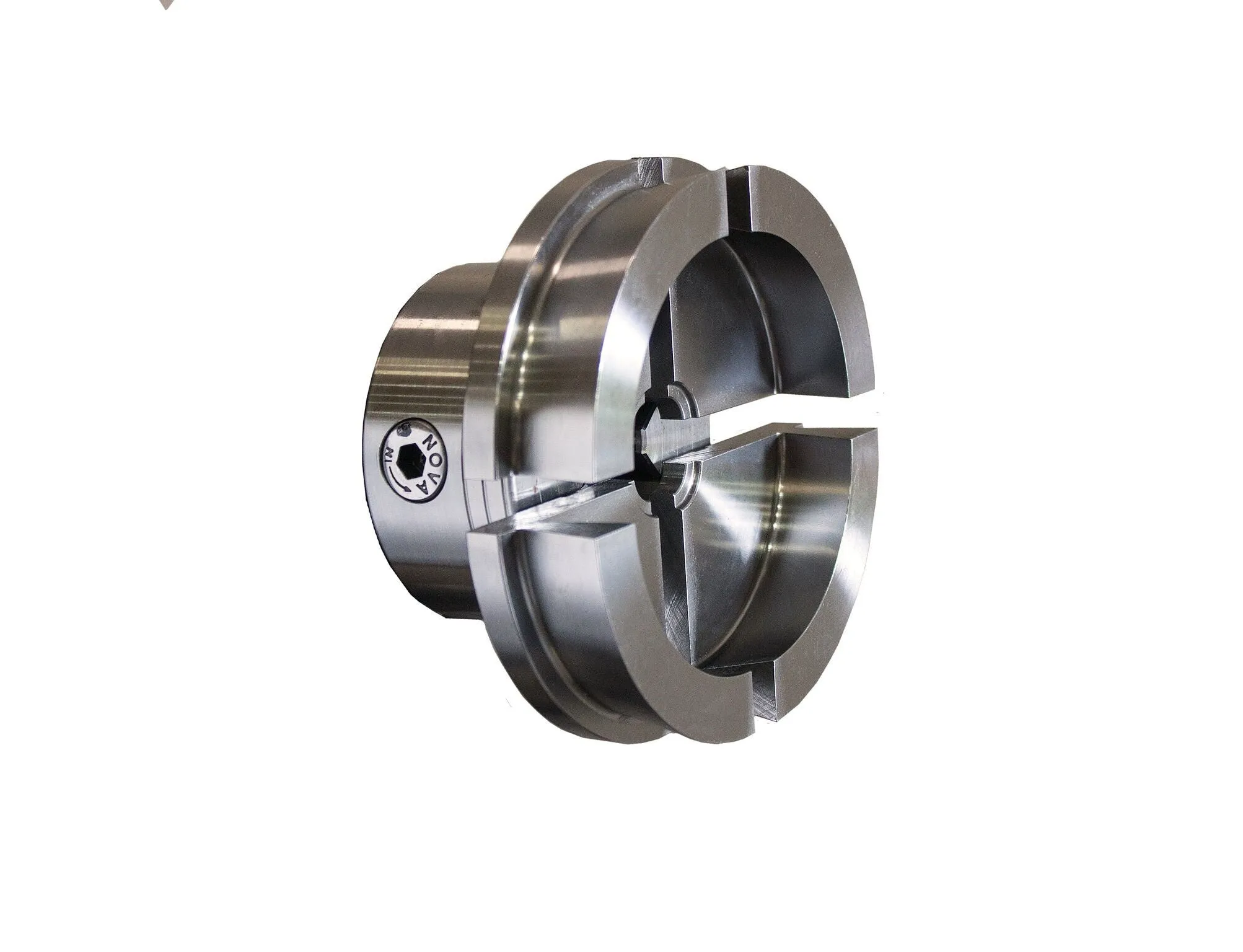

NOVA Infinity Accessory Jaw - Bowl Jaw Series #7
Nova SKU 8307
The NOVA Infinity Quick Change delivers fast and positive jaw changes which is much faster and less hassle than the screw fastening method with the older NOVA chuck models and other chuck brands. The NOVA Infinity Jaw Key and Infinity Jaws Slides are a precision cast metal amalgam 3 times the tensile strength of machine grade steel. Jaw Key positively taper locks into Jaw slide with an embedded dovetail design. A stronger and more rigid bond than the original NOVA Screw on Jaws. The Infinity Jaws are cam locked inline with the forward rotation of the chuck. They are safe to use at higher speeds and with larger turning work. The Infinity Jaws are larger, more robust and rigid than the older jaw designs, providing enhanced workholding and turning possibilities. The Infinity Jaws use the well proven NOVA Dovetail Profile, designed to grip the wood firmly for added safety.
The NOVA Infinity Bowl Jaws #7 are capable of holding:
Contracting Grip: Ranges from 4.016" to 4.803 See the NOVA product information sheet
Expansion Grip: Ranges from 5.354" to 6.141 For more sizes see the NOVA product information sheet
The standard equipment includes 4 x #7 Infinity Bowl Jaws Segments, 1 x Quick Start Instruction Manual. All backed by our comprehensive NOVA 6-Year Full Replacement Warranty.
- Infinity Chuck Jaw designed to hold large bowls, plates & platters.
- External dovetail to grip internal bowl recess. Internal dovetail to grip bowl foot. Able to grip round dowels. Capacity overlaps #6 Bowl jaw.
- Massive, heavy section deep jaws for maximum strength & rigidity.
- Largest bowl jaw in Nova range - up to 25mm (1") recess and dovetail recess diameter from 136mm (5.35") to 153mm (6").
- Not recommended for Nova Midi or G3 Chuck.
- Chuck, NOVA, Accessory, 4-Jaw Chuck.
- 6-Year Full Replacement.
