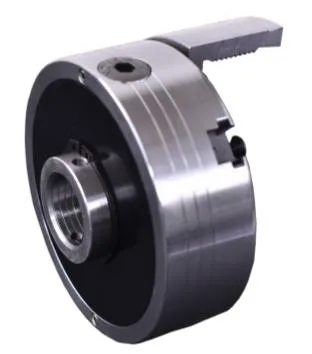

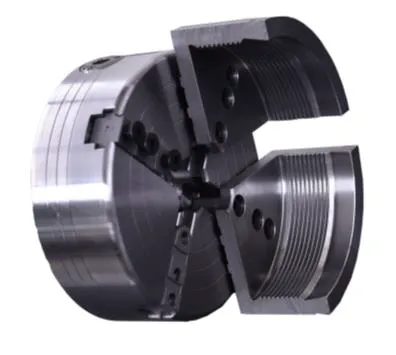

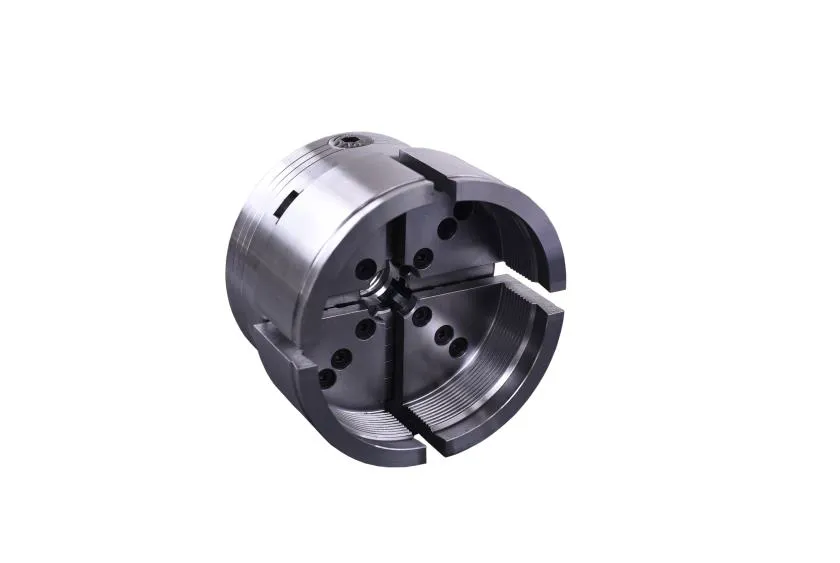

NOVA TITAN III CHUCK
Compatible with lathes with 20” swing, the NOVA Titan III Chuck delivers superior holding power for BIG projects, with 3 hole positions for extra strength but still uses all of the chuck jaws with only 2 holes
,
QUICK START GUIDE TO FEATURES AND BENEFITS
- The newest, largest and most powerful chuck in the NOVA Chuck Range. Perfect companion to the power and big capacity of the NOVA Galaxi DVR Lathe.
- Larger jaw capacity, capable of handling much larger projects than the SuperNova2.
- Fully sealed backing plate.
- PowerGrip Jaws and Woodworm Screw included as standard.
- Direct threads only (1 ¼”8TPI, M33)
- Precision hardened jaw slides with safety stop, featuring 3 hole jaw position for added security.
- Fast action.
- Powerful grip with precise, hardened gear action.
- Ball nose, comfort grip handle locks positively and quickly into pinion.
- 6-Year full warranty.
- Largest range of accessories on the market – fully compatible with NOVA Standard Chuck accessories. Plus two unique accessories suitable only for this chuck.
- Jaw profile especially designed for woodturning.
QUICK START GUIDE TO SPECIFICATIONS
Standard Equipment:
Chuck Body
T Bar Chuck Key
PowerGrip Jaws 3 Hole (SKU 13029)
Woodworm Screw
Fasteners
Instruction Manual
Packaged Weight: 4.1kgs
1 complete unit to a box
Boxed Dimensions: 229mmL x 152W x 86H. in a glossy color printed box with NOVA branding
6 Years Warranty on all parts
*All items listed above are included in the standard package
Accessories:
NOVA Titan III 5.75” HD Deep Grip Jaw
SKU – 13040
NOVA Titan III 6.5” HD Deep Grip Jaw
SKU – 13041
ORDERING
SKU#
1 ¼”8TPI – 13060
M33 x 3.5 – 13061
