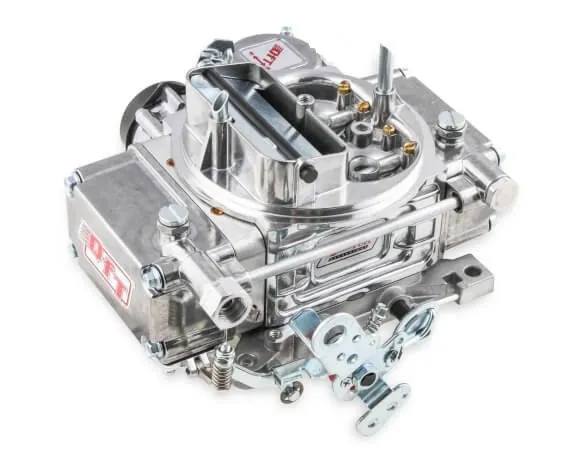

SLAYER SERIES CARBURETOR 450CFM VS
-4160
Slayer Series street carburetors are designed with many of the same innovations and features that are built into all QFT™ race-winning carburetors, including changeable air bleeds and power valve channel restrictions. Its designed with a secondary metering plate with changeable jets, and features all aluminum components for additional weight savings. All Slayer Series carburetors are equipped with universal throttle levers to accommodate Ford A/T kickdown, GM 700 R4 mounting holes, and ability to mount brackets for Chrysler vehicles. Slayer Series are available in 450, 600, and 750 cfm vacuum secondary models.
• Vacuum Secondaries
• Electric Choke
• Single Metering Block
• Secondary Metering Plate
• Cast Aluminum Throttle Body
• Single Sight Glass Windows
• Changeable Air Bleeds
• Adjustable Needles & Seats
• Notched Secondary Floats w/Jet Extensions
SPECS
| Barrels | 4 |
|---|---|
| Billet Color | Diecast-No Billet |
| Booster | Straight |
| Brand | Quick Fuel |
| Carburetor Use | Street |
| CFM | 450 |
| Choke | Electric |
| Circuit | 2 |
| Condition | New |
| Emission Code | 3 |
| Finish | Shiny |
| Fuel | Gasoline |
| Fuel System | Carbureted |
| High Speed Air Bleed | 35;33 |
| Idle Air Bleed Size | 70;39 |
| Marine Use | No |
| Material | Aluminum |
| Model | Slayer Series |
| Primary Main Jet | 55 |
| Primary Power Valve | 65 |
| Primary Pump Nozzle Size | 25 |
| Product Type | Carburetor |
| Secondaries | Vacuum |
| Secondary Main Jet | 60 |
| Supercharged Application | No |
| Throttle Bore | 1-9/16 inch |
| UPC | 849804015458 |
| Part Number | SL-450-VS |
.
TECH RESOURCES
.
Service parts
Rebuild Kit
Part# 3-200QFT
